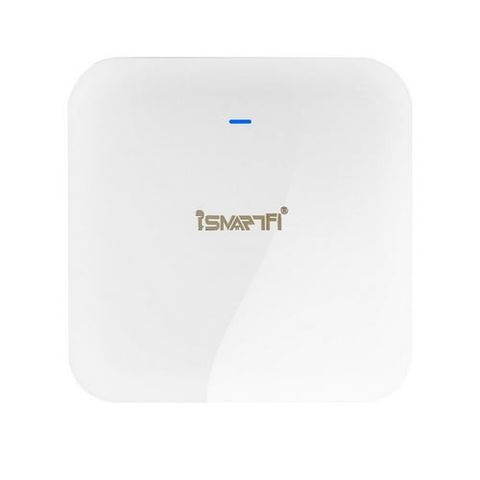

Thiết bị thu phát sóng wifi iSmartFi WiFi5 Pro (A770) được thiết kế với kiểu dáng trang nhã và thanh lịch, phù hợp cho môi trường lắp đặt vừa và lớn. Cấp nguồn PoE, phù hợp cho mọi thiết kế. Công suất phát rất mạnh, có thể triển khai cho dự án quy mô lớn
Cấu hình:
- Chuẩn: 802.11b/g/n/ac
- Tần số : 2.4GHz, 5GHz
- Tốc độ truyền dẫn : 300Mbps+900Mbps
- Flash: 16M ,RAM 128M
- 2 cổng RJ45 10/100/1000Mbps
- PoE: 48V 802.3at, DC 12V-1,5A
- Công suất phát: rất mạnh
- FIT/FAT AP
- Công nghệ MIMO 2x2, phủ sóng 360 độ.
- Giao thức CAPWAP FIT/FAT, quản lý tập trung
Thông số kỹ thuật chi tiết:
| Standard | 802.11b/g/n/ac, MINO | ||
Memory | 128MB | ||
Flash | 16MB | ||
Interface | 1*10/100/1000Mbps RJ45 WAN Port 1*10/100/1000Mpbs RJ45 LAN Port 1*Reset button, press 15 seconds to revert to defaulf setting. | ||
Antenna | Build in 5dBi 2.4GHz MINO Build in 5dBi 5.8GHz MINO Antenna | ||
PoE | 48V; 0.5A | ||
DC | 12V; 1A | ||
LED Indicator | Sys, 2.4G WiFi, 5.8G WiFi, LAN, WAN | ||
Max power Consumption | < 14W | ||
ESD | ± 6KV | ||
Surge protection | Different mode: ±2KV | ||
RF Data: | |||
Frequency | 2.4GHz:802.11b/g/n; 2400MHz ~ 2484MHz 5GHz:802.11a/n/ac; 5150MHz ~ 5850MHz | ||
Country code | FCC, IC, ETSI, MKK, MKK1, MKK2, MKK3, NCC, RUSSIAN, CN | ||
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM DSSS = DBPSK, DQPSK, CCK | ||
Throughout | 1200 Mbps | ||
RF Power (2.4GHz) | <22dBm | ||
RF Power (5GHz) | <21dBm | ||
PPM | ± 20ppm | ||
Max Users | 128+ | ||
Others: |
| ||
Package Contents | 1200Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory |
| |
Environment | Operating Temperature -20~50°C Storage Temperature -40~70°C Humidity: 5%~95% non-condensing Storage Humidity: 5%~95% non-condensing |
| |
Management | Firmware GUI, Remote Management, WLAN Controller, Cloud Management System |
| |
Firmware Features |
| ||
Operation mode | Wireless AP; Plug and play Gateway; Dynamic IP/Static IP/PPPoE |
| |
Wireless Functions | Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4 Support SSID hidden Support SSID broadcast Support 5G Prior for a faster Ethernet Wireless Security; OPEN, WPA, WPA2, WPA- PSK, WPA2-PSK Support MAC filter Support WiFi time on/off to save energy. Support client isolation to improve the wireless stability Support RF power adjustable, adjust the RF power bases on environment. |
| |
Device Management | Back-up the configuration Restore the configuration Reset to factory default Reboot the device: including time reboot or reboot immediately Admin management password modify Firmware upgrade System log Support firmware GUI web management, AC controller management. Remote management. | ||
