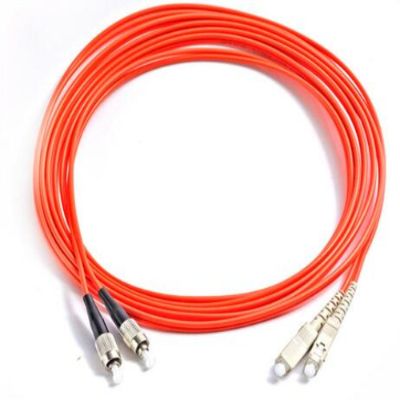

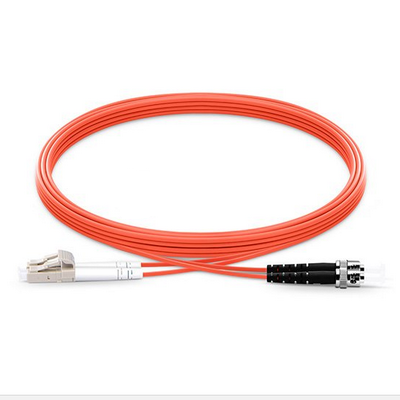

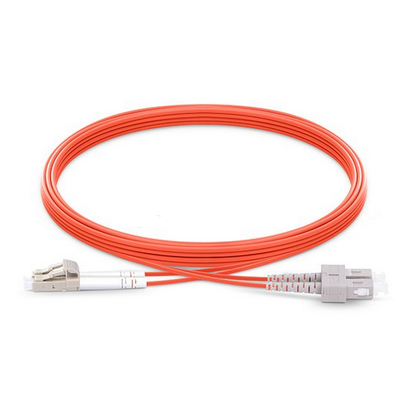

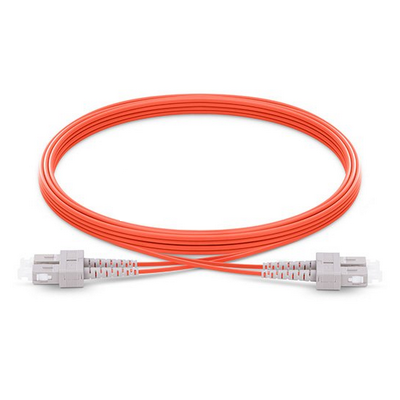

Dây nhảy quang Multimode

Mã sản phẩm: MM, SC-LC

← Sản phẩm trước

Mô tả sản phẩm

Dây nhảy quang đa mode (Multi-mode). Loại dây nhảy đơn (simplex) hoặc dây nhảy đôi (duplex). Kiểu đầu nối SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC.

Type	Standard,Master
Style	SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC.
Fiber Type	50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3
Fiber Cable Type	Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (For Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating temperature	-40⁰C to 85⁰C
Geometry Requirement (For Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1
