CISCO 2901/K9

Mã sản phẩm: 2901/K9

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

Overview (CISCO2901/K9)

The Cisco 2901 router, supporting voice module, is designed for small offices.

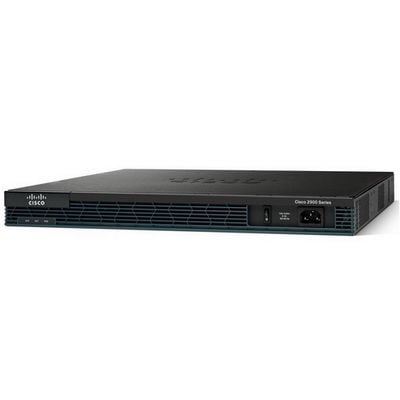

Figure 1 shows the appearance of the CISCO2901/k9.

CISCO2901/K9

Quick Specs of the CISCO2901/k9

Product Code	CISCO2901/k9
Rack Units	1U
Interfaces	2 integrated 10/100/1000 Ethernet ports
Expansion Slot(s)	2 onboard digital signal processor (DSP) slots 4 enhanced high-speed WAN interface card slots 1 onboard Internal Service Module for application services
RAM	512 MB (installed) / 2 GB (max)
Flash Memory	256 MB (installed) / 8 GB (max)
Dimensions	43.9 cm x 43.8 cm x 4.5 cm
Package Weight	11.48 Kg

Cards and Licenses

Recommended models for this router.

Cards	Description
VWIC3-2MFT-G703	Cisco Voice/WAN Card VWIC3-2MFT-G703
HWIC-2T	2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card
EHWIC-1GE-SFP-CU	Cisco 1900, 2900, 3900 Router EHWIC WAN Card vb EHWIC-1GE-SFP-CU
EHWIC-4ESG	Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers
ISM-SRE-300-K9	Internal Services Module (ISM) with Services Ready Engine
PVDM3-16	16-channel high-density voice DSP module
MEM-CF-256U1GB	256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900
MEM-CF-256U2GB	256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900
MEM-CF-256U512MB	256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR
MEM-CF-256U4GB	256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900
MEMUSB-1024FT	1GB USB Flash Token
Licenses	Description
L-SL-29-SEC-K9=	Cisco 2900 License L-SL-29-SEC-K9 Security E-Delivery PAK for Cisco 2901-2951
L-SL-29-APP-K9=	Cisco Application Experience License ISR 2900 Series - includes licenses for: AppX, DATA and WAASX
L-SL-29-SECNPE-K9=	Cisco 2900 License L-SL-29-SECNPE-K9 SEC No Payload Encryption E PAK for Cisco 2901-2951
L-SL-29-UC-K9=	Cisco 2900 License L-SL-29-UC-K9= Unified Communication E-Delivery PAK for Cisco 2901-2951

Specification (CISCO2901/K9)

CISCO2901/K9 Specification
General
Device Type	Router
Enclosure Type	Rack-mountable - modular - 1U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol	IPSec, L2TPv3
Routing Protocol	OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy- based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast
Remote Management Protocol	SNMP, RMON, TR-069
Features	Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Web Services Management Agent (WSMA), NetFlow
Compliant Standards	IEEE 802.3, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824
RAM	512 MB (installed) / 2 GB (max)
Flash Memory	256 MB (installed) / 8 GB (max)
Status Indicators	Link activity, power
Expansion and Connectivity

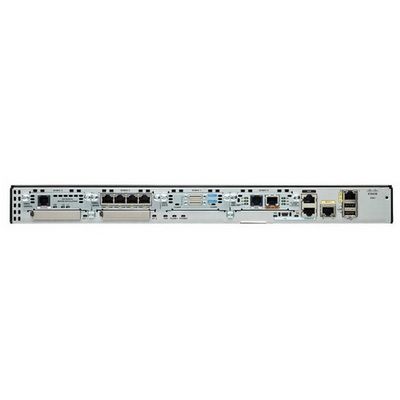

Interfaces	2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management : 1 x console - RJ-45 ¦ Management : 1 x console - mini-USB Type B ¦ Serial : 1 x auxiliary - RJ-45 ¦ USB : 2 x 4 pin USB Type A
Expansion Slot(s)	4 (total) / 4 (free) x EHWIC ¦ 2 (total) / 2 (free) x PVDM ¦ 2 (total) / 1 (free) x CompactFlash Card ¦ 1 (total) / 1 (free) x ISM
Power
Power Device	Power supply - internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
Miscellaneous
Dimensions (W × D × H)	17.2 × 17.3 × 1.8 in (43.9 x 43.8 x 4.5 cm)
Package Weight	25.09 lbs (11.48 Kg)
Weight	13.4 lbs (6.08 Kg)
Rack Mounting Kit	Included
Compliant Standards	CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, AS/NZS 3548 Class A, CAN/CSA C22.2 No. 60950-1, VCCI V-3, EN 61000, TIA/EIA/IS-968
Software / System Requirements
OS Provided	Cisco IOS IP Base
Manufacturer Warranty
Service & Support	90 days warranty
Service & Support Details	Limited warranty - 90 days
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 85%
