Overview (CISCO2901-SEC/K9)
Cisco 2901 Integrated Services Router (ISR) delivers highly secure data, voice, video, and application services for small offices. CISCO2901-SEC/K9 is almost the same as CISCO2901/K9, except that it offers Security bundle.
Quick Specs
Figure 1 shows the front view of CISCO2901-SEC/K9.
Table 1 shows the Quick Specs of the CISCO2901-SEC/K9.
Product Code | CISCO2901-SEC/K9 |
Bundle | Security Bundle w/SEC license PAK |
Rack Units | 1U |
Interfaces | 2 integrated 10/100/1000 Ethernet ports |
Expansion Slot(s) | 2 onboard digital signal processor (DSP) slots 4 enhanced high-speed WAN interface card slots 1 onboard Internal Service Module for application services |
RAM | 512 MB (installed) / 2 GB (max) |
Flash Memory | 256 MB (installed) / 8 GB (max) |
Dimensions | 43.9 cm x 43.8 cm x 4.5 cm |
Package Weight | 11.48 Kg |
Product Details

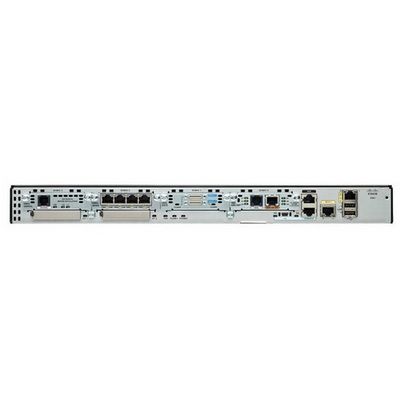

Figure 2 shows the ports on the back panel of CISCO2901-SEC/K9.
Note:
① EHWIC slots 0, 1, 2, and 3 (0, Far right) ⑥ CompactFlash 0 and 1
② Aux port ⑦ USB serial port
③ 10/100/1000 Ethernet port (GE0/0) ⑧ RJ-45 serial console port
④ Ground ⑨ 10/100/1000 Ethernet ports (GE0/1)
⑤ CompactFlash 0 and 1 ⑩ USB0 and USB1 (1, Top)
Figure 3 shows the LEDs on the back panel of CISCO2901-SEC/K9.
Note:
① CompactFlash 0 and 1 (0, Right) ⑤ EN (Enable RJ-45 console)
② ISM ⑥ S (Speed)
③ PVDM3 0 and 1 (0, Right) ⑦ L (Link)
④ EN (Enable USB console)
The Modules and Cards
Table 2 shows some recommended modules and cards for this router.
Models | Description |
VWIC3-2MFT-G703 | Cisco Voice/WAN Card VWIC3-2MFT-G703 |
HWIC-2T | 2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card |
EHWIC-1GE-SFP-CU | Cisco 1900, 2900, 3900 Router EHWIC WAN Card vb |
EHWIC-4ESG | Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers |
ISM-SRE-300-K9 | Internal Services Module (ISM) with Services Ready Engine |
PVDM3-16 | 16-channel high-density voice DSP module |
MEM-CF-256U1GB | 256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900 |
MEM-CF-256U2GB | 256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900 |
MEM-CF-256U512MB | 256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR |
MEM-CF-256U4GB | 256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900 |
MEMUSB-1024FT | 1GB USB Flash Token |
Specification (CISCO2901-SEC/K9)
CISCO2901-SEC/K9 Specification | |
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | CISCO2901-SEC/K9 |
Product Type | Router |
Form Factor | External - modular - 1U |
Dimensions (WxDxH) | 43.9 cm x 43.8 cm x 4.5 cm |
Weight | 6.1 kg |
DRAM Memory | 512 MB (installed) / 2 GB (max) |
Flash Memory | 256 MB (installed) / 8 GB (max) |
Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Network / Transport Protocol | IPSec |
Remote Management Protocol | SNMP, RMON |
Features | Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Dynamic Multipoint VPN (DMVPN) |
Compliant Standards | IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag |
Power | AC 120/230 V ( 50/60 Hz ) |
