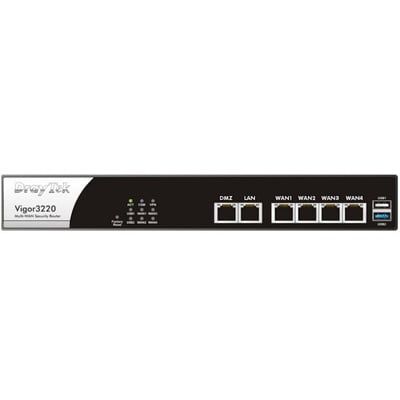

DrayTek Vigor3220

Mã sản phẩm: Vigor3220
Giá gốc 8,650,000₫

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

4 Gigabit WAN Load Balancing VPN Router

  • WAN: 4 x 10/100/1000Mbps, RJ45
  • LAN: 1 x 10/100/1000Mbps
  • DMZ: 1 x 10/100/1000Mbps
  • 1 x USB 3.0 hỗ trợ 3.5G/4G modem
  • 1 x USB 2.0 hỗ trợ kết nối ổ cứng lưu trữ
  • NAT Session: 80.000
  • NAT Throughput: 900Mbps (WAN mode Static)
  • Hỗ trợ chia 8 lớp mạng khác nhau (801.2q vlan tag) giúp tăng bảo mật và khả năng quản lý hệ thống
  • Router chuyên nghiệp Công ty vừa và nhỏ, phòng Internet, Game

Thông số kỹ thuật chi tiết:

PHẦN CỨNG
Port
  • 4 x 10/100/1000Base-Tx WAN Port, RJ-45
  • 1 x 10/100/1000Base-Tx LAN Switch, RJ-45
  • 1 x 10/100/1000Base-Tx DMZ Port, RJ-45
  • 2 x USB Host (USB1 is 2.0 and USB2 is 3.0)
  • 1 x Console Port, RJ-45
Nguồn
  • Power AC100-240V/ 1.0A
  • Power Consumption 19 watt
Nút điều khiển
  • 1 x Factory Reset Button
Kích thước
  • L 273 * W 176 * H 46 ( mm )
PHẦN MỀM
WAN

Multi-WAN  (Ethernet / 3.5G)

  • Outbound Policy-based Load-balance
  • WAN Connection Failover

WAN Protocol

  • DHCP Client
  • Static IP
  • PPPoE
  • PPTP
  • L2TP
Network



  • Packet Forwarding Acceleration
  • DHCP client/relay/server
  • DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125
  • IGMP v2/v3
  • LAN DNS /DNS Forwarding
  • Dynamic DNS
  • NTP client
  • Call scheduling
  • RADIUS /TACACS+ Client
  • RADIUS Server
  • Active Directory /LDAP compatible (client)
  • DNS cache/proxy
  • UPnP 50 sessions
  • Wake on LAN
  • Bonjour service
  • Routing protocol :
    • Static routing (IPv4 static route 40 entries, and IPv6 static route 40 entries)
    • RIP v1/v2



Management



  • Web-Based User Interface (HTTP/HTTPS)
  • Quick Start Wizard
  • CLI (Command Line Interface, Telnet/SSH)
  • Administration Access Control
  • Configuration Backup/Restore
  • Built-in Diagnostic Function
  • Firmware Upgrade via TFTP/FTP/HTTP/TR-069
  • Logging via Syslog
  • SNMP Management with MIB-II
  • Management Session Time Out
  • 2-level management (Admin/User Mode)
  • TR-069 Management
  • TR-104 Management



Chất lượng dịch vụ



  • QoS :
    • Guarantee Bandwidth for VoIP
    • Class-based Bandwidth Guarantee by User-defined Traffic Categories
    • DiffServ Code Point Classifying
    • 4-level Priority for Each Direction (Inbound/Outbound)
    • Bandwidth Borrowed
  • Bandwidth / Session Limitation
  • Layer-2 (802.1p) and Layer-3 (TOS / DSCP) QoS Mapping *



VPN
  • Up to 100 VPN Tunnels (including 50 SSL VPN tunnels)*
  • Protocol: PPTP, IPSec, L2TP, L2TP over IPSec
  • Encryption: MPPE and Hardware-based AES/DES/3DES
  • Authentication: MD5, SHA-1
  • IKE Authentication: Pre-shared Key and Digital Signature (X.509)
  • LAN-to-LAN, Teleworker-to-LAN (remote user dial-in)
  • DHCP over IPSec
  • IPSec NAT-Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • VPN Pass-Through
  • mOTP
Tính năng nâng cao



 Firewall

  • DMZ Host, Port-redirection(Up to 40 entries) and Open Port(Up to 40 entries)
  • Object-based Firewall
  • MAC Address Filter
  • SPI (Stateful Packet Inspection) (Flow Track)
  • DoS Prevention
  • IP Address Anti-Spoofing
  • E-mail alert and logging via Syslog
  • Bind IP to MAC Address
  • Time Schedule Control

Central Device Management

  • AP Management : 30 nodes (independent with External Device feature)*
  • Central VPN Management : 8 nodes
  • Switch Management : 10 nodes *

Content Security Management (CSM)

  • APP Enforcement
    • Support APPE Signature Upgrade by license.
  • URL Content Filter
    • Access Control : URL Keyword Blocking (White/Black List)
    • Web Feature : Java Applet, Cookies, Active X, Compressed,Executable,Multimedia File Blocking
  • Web Content Filter (support Cyren and BPjM )



USB
  • 3.5G (HSDPA) and 4G (LTE) as WAN5 by using USB dongle
    (USB1: disk/sensor/printer,USB2: 3G/LTEdongle/disk/sensor/printer)
  • File System :
    • Support FAT32 / FAT16 file system
    • Support FTP function for File Sharing
THÔNG SỐ KHÁC
Môi trường
  • Temperature Operating : 0°C ~ 45°C
  • Storage : -25°C ~ 70°C
  • Humidity 10% ~ 90% ( non-condensing )
