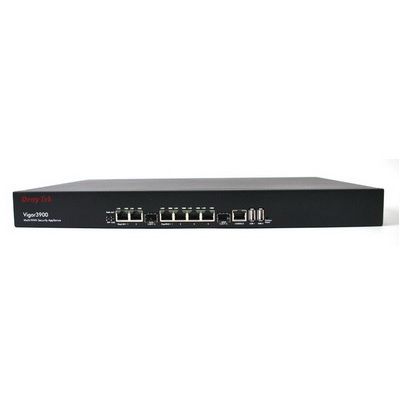

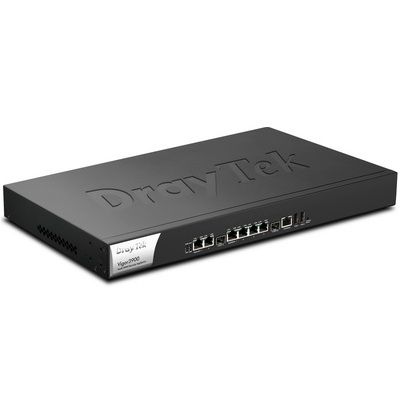

DrayTek Vigor3900

Mã sản phẩm: Vigor3900
Giá gốc 19,800,000₫

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

Quad-WAN Firewall Router & VPN Gateway

  • 4 cổng 100/1000Mbps RJ45 WAN  + 1 slot SFP Fiber WAN
  • 2 cổng 100/1000Mbps RJ45 LAN + 1 slot SFP Fiber LAN
  • 2 cổng USB kết nối 3G/4G Backup (or Load Balancing), ổ cứng lưu trữ
  • Hỗ trợ 500 kênh VPN (PPTP, L2TP, IPSec, SSL)
  • VPN Trunking (LoadBalance / Backup)
  • VPN qua 3G/4G (Dial-out)
  • Outbound & Inbound Load Balancing
  • Hỗ trợ High Availability (dự phòng phần cứng)
  • Hỗ trợ PPPoE server với quota policy và MAC address filter
  • Tính năng tường lửa linh hoạit, Content Filtering, và chính sách quản lý băng thông
  • Hỗ trợ tính năng Central Management kết hợp Vigor Router, VigorAP, and Vigor Switch
  • Tương thích phần mềm quản lý tập trung Vigor ACS SI qua TR-069

Thông số kỹ thuật chi tiết:

PHẦN CỨNG
Port
  • 4 x 10/100/1000M WAN/DMZ WAN Switch, RJ-45
  • 2 x 10/100/1000M LAN Switch, RJ-45
  • 2 x USB Host 2.0 for Printer and 3G/4G.
  • 1 x Console, RJ-45
  • 2 x SFP Slot ( 1 Fixed WAN & 1 Fixed LAN)
Nguồn
  • Power Adapter 100V-240V
  • Max. Power 20 watt
Nút điều khiển
  • 1 x Factory Reset Button
Kích thước
  • L 443 * W 280 * H 44 ( mm )
PHẦN MỀM
WAN



Multi-WAN  (Ethernet / 3.5G)

  • Outbound Policy-based Load-balance
  • WAN Connection Failover

WAN Protocol

  • DHCP Client
  • Static IP
  • PPPoE
  • PPTP
  • BPA
  • L2TP



Network



  • Packet Forwarding Acceleration
  • DHCP Client/Relay/Server
  • DHCP Option
  • IGMP V2
  • Dynamic DNS
  • NTP Client
  • Call Scheduling
  • RADIUS Client
  • DNS Proxy
  • UPnP 30 Sessions
  • Routing Protocol:
    • Static Routing
    • RIP V2
  • Multiple Private LAN Subnets(Multi-Subnets)
  • VLAN Tagging (802.1q) on WAN



Management



  • Web-Based User Interface (HTTP/HTTPS)
  • Quick Start Wizard
  • CLI (Command Line Interface, Telnet/SSH)
  • Administration Access Control
  • Configuration Backup/Restore
  • Built-in Diagnostic Function
  • Firmware Upgrade via TFTP/FTP/HTTP/TR-069
  • Logging via Syslog
  • SNMP Management with MIB-II
  • Management Session Time Out
  • 2-level management (Admin/User Mode)
  • TR-069 Management
  • TR-104 Management



Chất lượng dịch vụ



  • QoS :
    • Guarantee Bandwidth for VoIP
    • Class-based Bandwidth Guarantee by User-defined Traffic Categories
    • DiffServ Code Point Classifying
    • 4-level Priority for Each Direction (Inbound/Outbound)
    • Bandwidth Borrowed
  • Bandwidth / Session Limitation
  • Layer-2 (802.1p) and Layer-3 (TOS / DSCP) QoS Mapping *



VPN



  • 500 IPsec/PPTP/L2TP VPN Tunnels (up to 100 PPTP VPN tunnels)
  • 100 SSL VPN Tunnels
  • Protocol: PPTP, IPSec, L2TP, L2TP over IPSec
  • Encryption: MPPE and Hardware-based AES/DES/3DES
  • Authentication: Hardware-based MD5, SHA-1
  • IKE Authentication: Pre-shared Key and Digital Signature (X.509)
  • LAN-to-LAN, Teleworker-to-LAN
  • DHCP over IPSec
  • NAT-Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • VPN Pass-through
  • VPN Wizard
  • SSL VPN



Tính năng nâng cao



Firewall
  • Multi-NAT, DMZ Host, Port-redirection and Open Port
  • Object-based Firewall
  • MAC Address Filter
  • SPI (Stateful Packet Inspection) (Flow Track)
  • DoS Prevention
  • IP Address Anti-spoofing
  • E-mail Alert and Logging via Syslog
  • Bind IP to MAC Address
  • Time Schedule Control
Central Device Management
  • AP Management : 50 nodes (independent with External Device feature)*
  • Central VPN Management : 16
  • Switch Management : 20
Content Security Management
  • IM/P2P Applications V3 (APP Enforcement)
  • URL Content Filter :
    • URL Keyword Blocking (White List and Black List)
    • Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
    • Excepting Subnets
    • Time Schedule Control
  • GlobalView Web Content Filter (Powered by ) *



USB



  • 3.5G USB Modem
  • File System :
    • Support FAT32 / FAT16 File System
    • Support FTP Function for File Sharing



THÔNG SỐ KHÁC
Môi trường
  • Temperature Operating : 0°C ~ 45°C
  • Storage : -25°C ~ 70°C
  • Humidity 10% ~ 90% ( non-condensing )
